Processor for enhancement
of stereo effect. It should be connected before FM audio processor. It works with 100% mono compatibility.
There are no additional phase shifts between stereophonic channels in processing chain, but only level

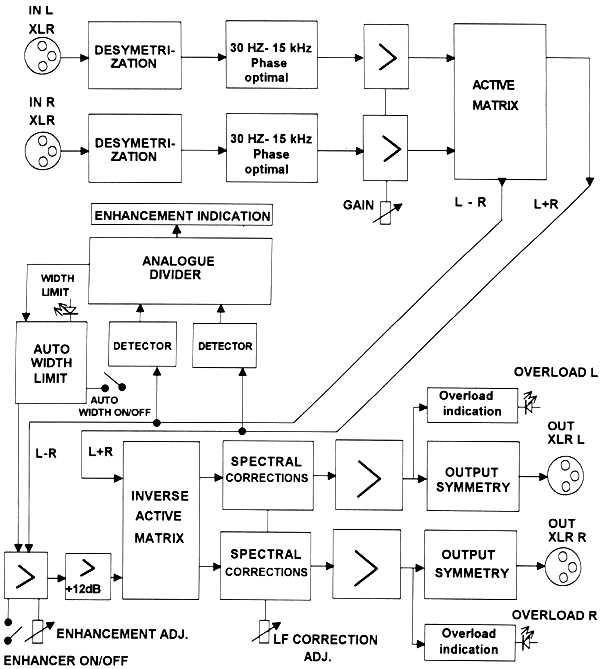

differences. System splits signal into two ways. First is sum signal (M), second is difference signal (S).
System cares about ratio of this signals. Maximum M/S ratio is limited to 1:1 by intelligent matrix circuit.
Elements for adjustments and display section are located on the front panel.
The case is made from
passivated steel CD 5B - results is an excellent electromagnetic compatibility. Front panel has a vinyl
plastic surface.
Dimensions: 1U, 19" (482x45x210mm)
|
